0.51 in. (13 mm) PKP Series 2-Phase Bipolar Stepper Motors

The high-torque PKP series stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.

0.51 in. (13 mm) Frame Size
2-phase, Bipolar
Current per Phase = 0.6 A
Single or Double Shaft
Geared type available
Max. Holding Torque
- Round Shaft Type = 1.06 oz-in (0.0075 N·m)
- Geared Type = 8.5 ~ 21.24 oz-in (0.06 ~ 0.15 N·m)

26 - 32 of 32 | Results Per Page | View | Unit of Measure

1 2

Request Information Compare Items Search by Specification

Clear Filter

Type

Standard
Geared

Current per Phase (A/phase)

0.6

Shaft/Gear Type

Round Shaft (No Gearhead)
Harmonic Gear

Gear Ratio (X:1) (:1)

30
50
100

Shaft

Single
Double

Encoder

200 P/R, 3-Channel
400 P/R, 3-Channel
1000 P/R, 3-Channel
None

Output Type

Open-collector output
Voltage (TTL equivalent)

Electromagnetic Brake

Not Equipped

Motor Connection Type

Connector

Item #	Frame Size	Motor Length	Speed-Torque Characteristics	Holding Torque	Current per Phase (A/phase)	Shaft/Gear Type	Gear Ratio (X:1)	Lost Motion	Shaft	Encoder	Output Type	Electromagnetic Brake	Motor Connection Type	Web Price	CAD	Add To Cart / Contact Sales

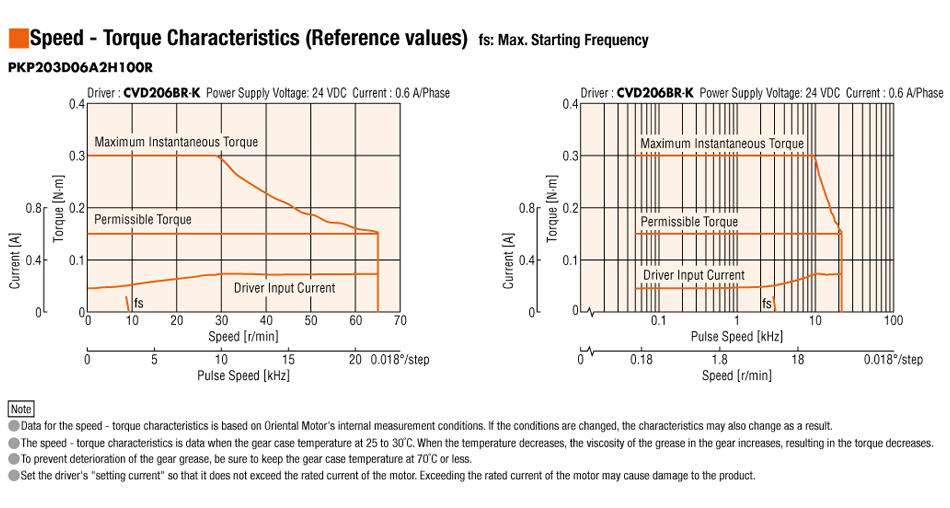

PKP203D06A2H50R3JN	- 0.51 in13 mm	- 2.24 in.57 mm	Speed - Torque Characteristics	- 15.58 oz-in0.11 N·m	- 0.6	- Harmonic Gear	- 50 :1	- 1.5 arc min (max)	- Single	- Equipped	- Open-collector output	- Not Equipped	- Connector	$2,070.00	-	Add To Cart Request Quote
PKP203D06A2H100R3E	- 0.51 in13 mm	- 2.24 in.57 mm	Speed - Torque Characteristics	- 21.24 oz-in0.15 N·m	- 0.6	- Harmonic Gear	- 100 :1	- 1.5 arc min (max)	- Single	- Equipped	- Voltage (TTL equivalent)	- Not Equipped	- Connector	$2,070.00	-	Add To Cart Request Quote
PKP203D06A2H100R3EN	- 0.51 in13 mm	- 2.24 in.57 mm	Speed - Torque Characteristics	- 21.24 oz-in0.15 N·m	- 0.6	- Harmonic Gear	- 100 :1	- 1.5 arc min (max)	- Single	- Equipped	- Open-collector output	- Not Equipped	- Connector	$2,070.00	-	Add To Cart Request Quote
PKP203D06A2H100R3F	- 0.51 in13 mm	- 2.24 in.57 mm	Speed - Torque Characteristics	- 21.24 oz-in0.15 N·m	- 0.6	- Harmonic Gear	- 100 :1	- 1.5 arc min (max)	- Single	- Equipped	- Voltage (TTL equivalent)	- Not Equipped	- Connector	$2,070.00	-	Add To Cart Request Quote
PKP203D06A2H100R3FN	- 0.51 in13 mm	- 2.24 in.57 mm	Speed - Torque Characteristics	- 21.24 oz-in0.15 N·m	- 0.6	- Harmonic Gear	- 100 :1	- 1.5 arc min (max)	- Single	- Equipped	- Open-collector output	- Not Equipped	- Connector	$2,070.00	-	Add To Cart Request Quote
PKP203D06A2H100R3J	- 0.51 in13 mm	- 2.24 in.57 mm	Speed - Torque Characteristics	- 21.24 oz-in0.15 N·m	- 0.6	- Harmonic Gear	- 100 :1	- 1.5 arc min (max)	- Single	- Equipped	- Voltage (TTL equivalent)	- Not Equipped	- Connector	$2,070.00	-	Add To Cart Request Quote
PKP203D06A2H100R3JN	- 0.51 in13 mm	- 2.24 in.57 mm	Speed - Torque Characteristics	- 21.24 oz-in0.15 N·m	- 0.6	- Harmonic Gear	- 100 :1	- 1.5 arc min (max)	- Single	- Equipped	- Open-collector output	- Not Equipped	- Connector	$2,070.00	-	Add To Cart Request Quote

26 - 32 of 32 | Results Per Page | View | Unit of Measure

1 2
