The αSTEP AZ Series stepper motor offers closed loop control, substantially reduces heat generation from the motor and by incorporating the newly developed Absolute Mechanical Encoder, absolute-type positioning is available, without battery back up or external sensors to buy.
- Round Shaft with Flat
- Requires αSTEP AZ Series Driver
- Connector Type
*Connection Cables required (sold separately)
| Lead Time1 | Up to 5 pcs as of 6:30am EST Estimated Ship: 04/24/2025 |
Product Line |
Oriental Motor® |

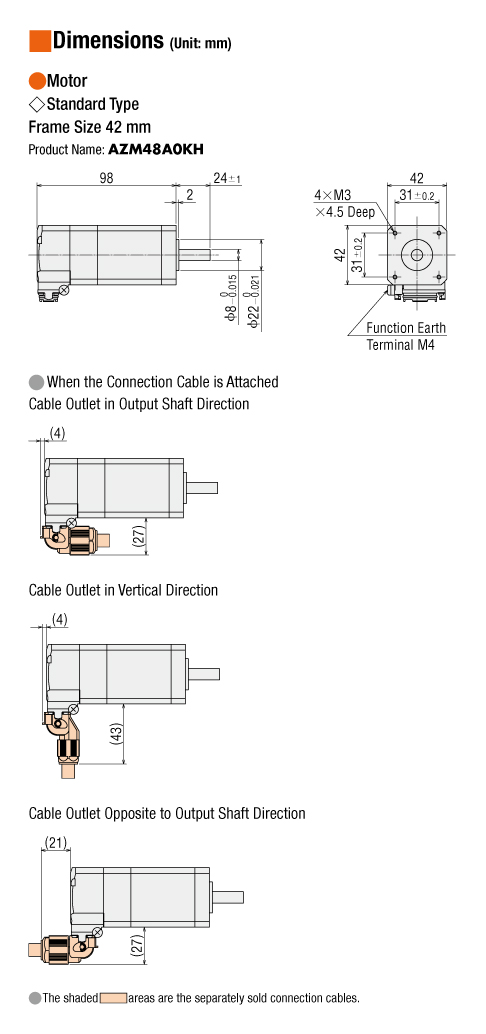

Frame Size |
1.65 in |
Motor Length |
3.86 in. |
Driver Voltage Input Power |
DC |
Speed-Torque Characteristics |
 Speed - Torque Characteristics |
Holding Torque |
102 oz-in |
Holding Torque at Motor Standstill |
51 oz-in |
Type |
Absolute Mechanical Encoder |
Shaft/Gear Type |
Round Shaft (No Gearhead) |
Shaft |
Single |
Electromagnetic Brake |
Not Equipped |
Connection Type |
Connector |
Resolution (Resolution Setting: 1000 P/R) |
0.36 °/Pulse |
Rotor Inertia |
0.63 oz-in² |
RoHS Compliant |
These products do not contain substances that exceed the regulation values in the RoHS Directive. |
Safety Standards |
UL CE |
CE Marking |
EMC Directives |
Insulation Class |
Class B [130ºC (266ºF)] [Recognized as 105 (A) by UL.] |
Insulation Resistance |
100 MΩ or more when 500 VDC megger is applied between the following places: Case - Motor and sensor windings |
Dielectric Strength |
Sufficient to withstand the following for 1 minute: Case - Motor and sensor windings 1.0 kVAC 50 Hz or 60 Hz |
Ambient Temperature |
0 ~ 40ºC (32 ~ 104ºF) (non-freezing) |
Ambient Humidity |
85% or less (Non-condensing) |
Degree of Protection |
IP66 when connecting the connection cable (excluding the mounting surface and connector on the driver side of the connection cable) |
Stop Position Accuracy |
±4 arc minutes (±0.067º) |
Permissible Overhung Load |
0 in. from Shaft End = 6.7 lb0.2 in. from Shaft End = 7.8 lb0.39 in. from Shaft End = 9.9 lb0.59 in. from Shaft End = 13 lb0.79 in. from Shaft End = 19.1 lb |
Permissible Axial Load |
3.3 lb |
