| Lead Time1 | - Contact your local sales office for more information |

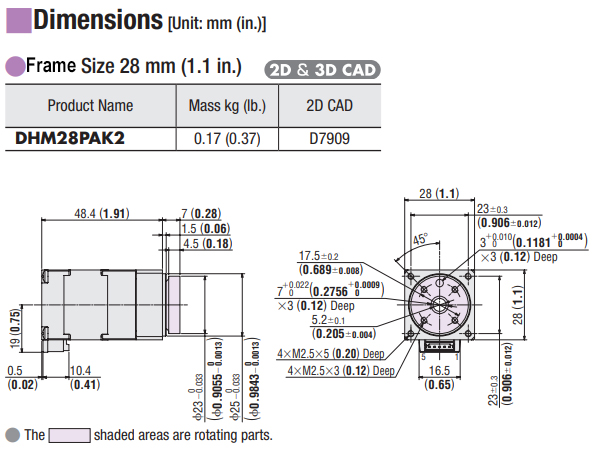

Frame Size |
- 1.1 in28 mm |
Diameter of Hollow Section |
- 0.2 in5.2 mm |
Power Supply |
- 24 VDC |
Electromagnetic Brake |
- Not Equipped |
Max. Holding Torque |
- 0.26 lb-in0.029 N·m |

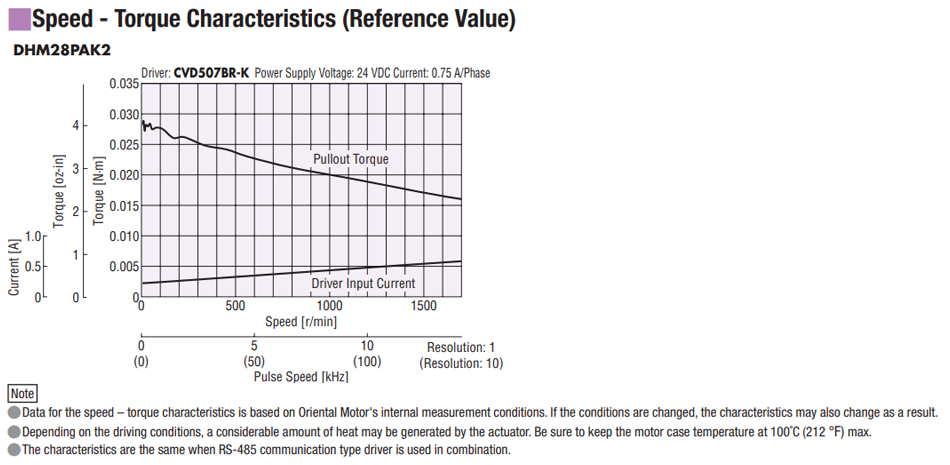

Holding Torque at Standstill |
- 1.98 oz-in0.014 N·m |
Rotor Inertia |
- 0.191 oz-in²3.5×10⁻⁶ kg·m² |
Rated Current |
- 0.75 A/phase |
Basic Step Angle |
- 0.72° |
Stop Position Accuracy |
- ±0.33˚ |
Repetitive Positioning Accuracy (arc sec) |
- ±0.15˚ |
Permissible Axial Load |
- 8.99 lb40 N |
Permissible Moment Load |
- 0.1 N·m14.2 oz-in |
Runout of Output Table Surface |
- 0.05 mm0.00197 in. |
Runout of Output Table Inner (Outer) Diameter |
- 0.05 mm0.00197 in. |
Thermal Class |
- 130(B) |
Insulation Resistance |
- The measured value is 100 MΩ or more when a 500 VDC megger is applied between the following locations: Between case and motor windings |
Dielectric Strength |
- Sufficient to withstand the following for 1 minute: Between case and motor windings: 0.5 kVAC, 50 Hz or 60 Hz |
Ambient Temperature Range |
- 0 to +40˚C (+32 to +104 °F) (Non-freezing) |
Ambient Humidity |
- 85% or less (Non-condensing) |
Operating Atmosphere |
- No corrosive gas or dust. No water or oil. |
Degree of Protection |
- IP20 |
