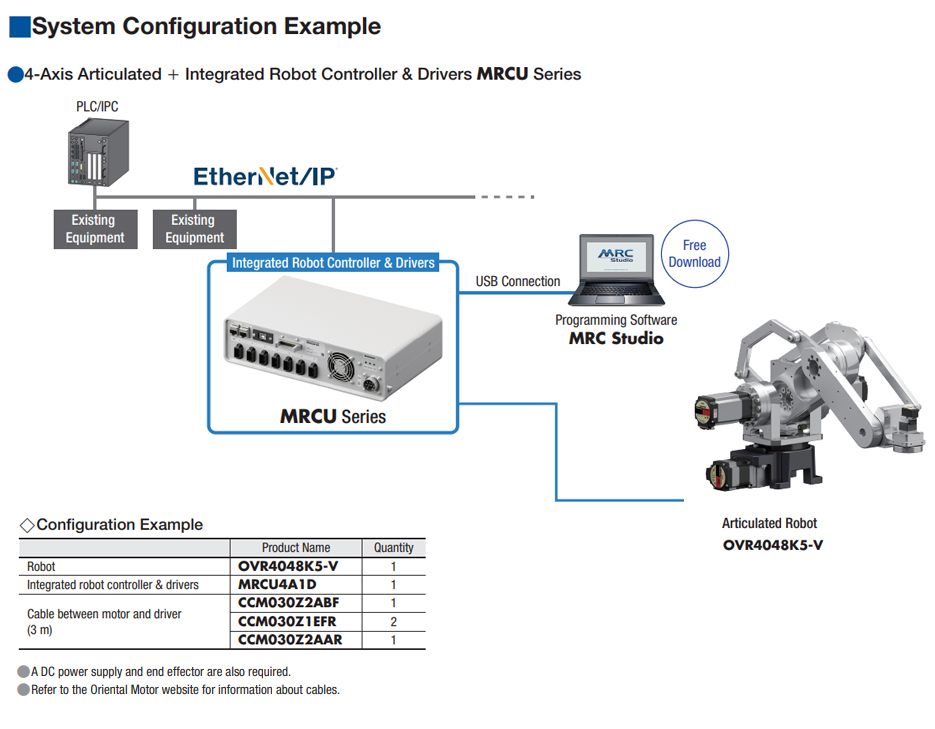

The OVR Series Articulated 4-axis small horizontal transport robot features a simple mechanism that can be easily controlled and constructed cost-effectively. Control with the MRC Series controller and AZ Series motor drivers.
- Parallel link mechanism
- Transportable mass 5 kg
- The end of the arm is always mechanically level with the installation surface, ensuring stable horizontal transport
Articulated Small Robots OVR
Small Robots OVR
| Lead Time1 | |
Product Line |
- OVR |
Robot Configuration |
- Articulated |
Number of Axes |
- 4-axis |
Max. Vertical Reach |
- 570 mm |
Max. Horizontal Reach |
- 480 mm |
Power Supply |
- DC |
Transportable Mass |
- 5 kg |
Input Voltage (V) |
- 24 VDC |
Standard Cycle Time (sec) |
- 0.7 |
Moving Range - S-axis (Swiveling) |
- ±170 deg |
Moving Range - L-axis (Lower arm) |
- −27~+80 deg |
Moving Range - U-axis (Upper arm) |
- −58~+35 deg |
Moving Range - R-axis (Wrist swiveling) |
- ±180 deg (±170 deg when the robot controller MRC01 is used) |
Repetitive Positioning Accuracy |
- ±0.05 mm |
Permissible Inertia (Wrist swiveling axis) |
- 0.069 kgm² |
Chassis Mass |
- 16.5 kg |
Installation Type |
- Frame mounting |
|
|
|
|
|
|
- 1 Quoted Ship Date for orders placed before 12:00 pm PST. Quantities may affect Shipping Date.
