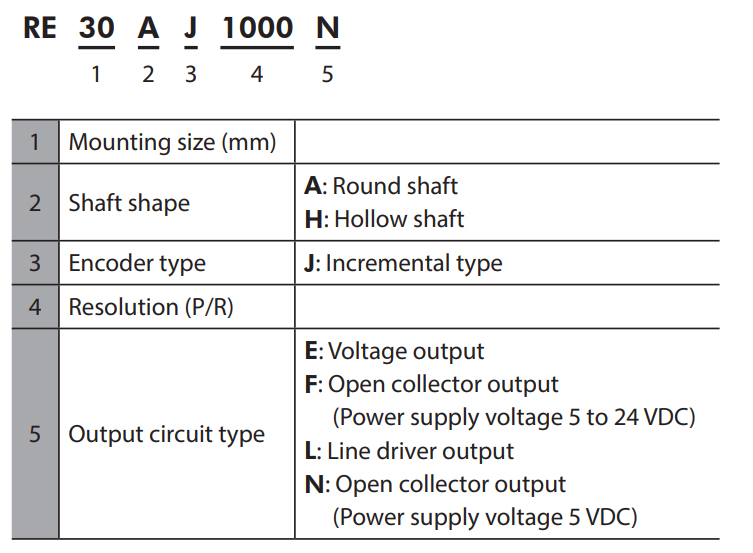

Mounting Size |
1.18 in |
Output Shaft Type |
Round Shaft |
Resolution (P/R) |
720 (P/R) |
Output Type |
Incremental |
Output |
Line Driver |
Output Signals |
Phase A, Phase B, Phase Z: 3 Channels |
Output Circuit |
 |
Max. Draw Current |
20 mA |
Output Voltage (High) |
2.5 VDC min |
Output Voltage (Low) |
0.5 VDC max. |
Response Frequency (kHz) |
200 kHz max. |
Power Supply |
5 VDC ± 10% |
Current Consumption |
30 mA max. |
Angular Accuracy |
±0.36˚ |
Vibration |
10~55 Hz, double amplitude 1.5 mm, 2 hours each in X, Y, and Z directions |
Shock |
490 m/s2 11 ms X, Y, Z directions; 3 times each |
Inertia |
0.005 oz-in² |
Permissible Radial Load |
2.25 lb |
Permissible Axial Load |
1.12 lb |
Max Speed (rpm) |
6000 r/min (Max. Response Frequency) |
Mass |
1.16 oz |
Ambient Humidity |
85% or less (Non-condensing) |
Altitude |
Up to 1000 m above sea level |
Degree of Protection |
IP20 |
Operating Atmosphere |
No corrosive gases or dust. The product should not be exposed to water, oil or other liquids. |
Insulation Resistance |
100 MΩ or more when a 500 VDC megger is applied between the power supply terminal and the frame. |
Dielectric Strength |
Sufficient to withstand 0.5 kVAC at 50/60 Hz applied between the power supply terminal and the frame for 1 minute. |
