1.65 in. (42 mm) Flat PKP Series 2-Phase Bipolar Stepper Motors
PKP Series 2-Phase Bipolar Stepper Motors
The flat high-torque PKP series stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.
- 1.65 in. (42 mm) Frame Size
- Flat Motor Type
- 2-phase, Bipolar
- Current per Phase = 2.3 A
- Max. Holding Torque:
• Round Shaft Type = 14.2 oz-in (0.1 N·m)
• Gear Type = 255 ~ 355 oz-in (1.8 ~ 2.4 N·m)
Item # |
Step Angle |
Frame Size |
Motor Length |
Speed-Torque Characteristics |
Holding Torque |
Current per Phase (A/phase) |
Shaft/Gear Type |
Gear Ratio (X:1) |
Output Shaft Diameter |
Shaft |
Encoder |
Encoder Output |
Output Type |
Lead Wires |
Web Price |
Add To Cart / Contact Sales |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PKP242D23A2 | Step Angle 1.8 ° | Frame Size 1.65 in | Motor Length 0.67 in. |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque 14.2 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Output Shaft Diameter 5 mm | Shaft Single | Encoder Not Equipped | Encoder Output - | Output Type - | Lead Wires 4 | $84.00 |
Add To Cart
Request Quote |
| PKP242D23A2-H50 | Step Angle 1.8 ° | Frame Size 2 in | Motor Length 1.16 in. |
Speed-Torque Characteristics
 Speed-Torque Characteristics |
Holding Torque 255 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 50 :1 | Output Shaft Diameter - | Shaft Single | Encoder Not Equipped | Encoder Output - | Output Type - | Lead Wires 4 | $919.00 |
Add To Cart
Request Quote |
| PKP242D23A2-H100 | Step Angle 1.8 ° | Frame Size 2 in | Motor Length 1.16 in. |
Speed-Torque Characteristics
 Speed-Torque Characteristics |
Holding Torque 339 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 100 :1 | Output Shaft Diameter - | Shaft Single | Encoder Not Equipped | Encoder Output - | Output Type - | Lead Wires 4 | $919.00 |
Add To Cart
Request Quote |
| PKP242D23A2H50R3F | Step Angle 0.036 ° | Frame Size 2 in | Motor Length 1.69 in. |

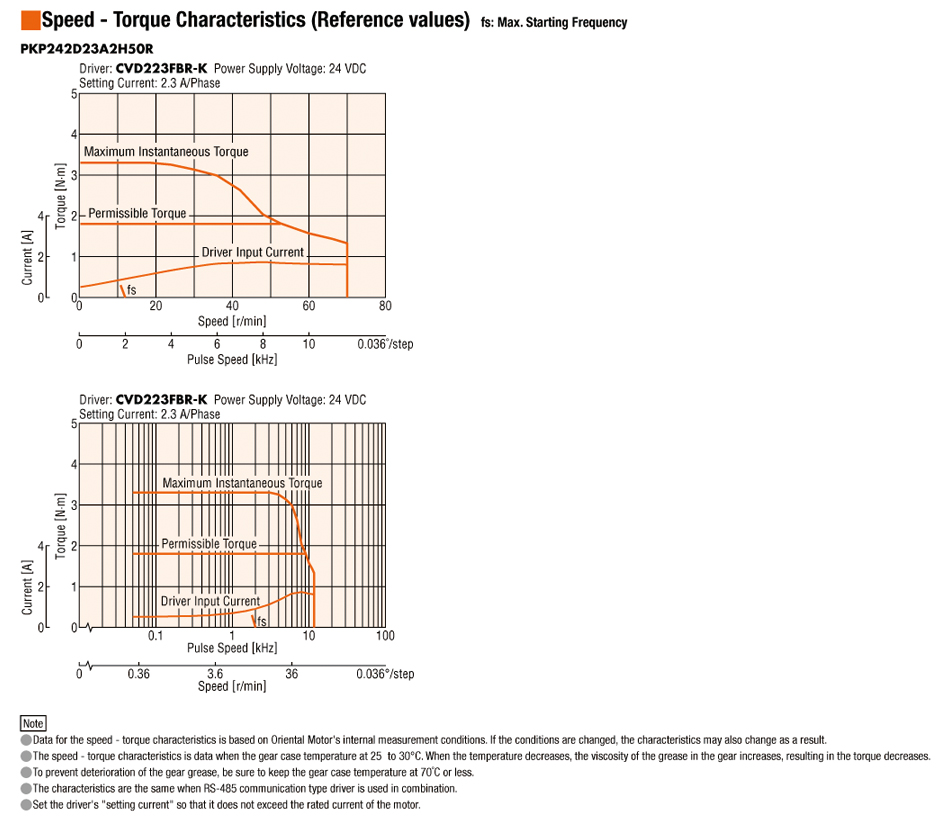

Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque 255 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 50 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 400 P/R, 3-Channel | Output Type Voltage (TTL equivalent) | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2H100R3E | Step Angle 0.018 ° | Frame Size 2 in | Motor Length 1.69 in. |

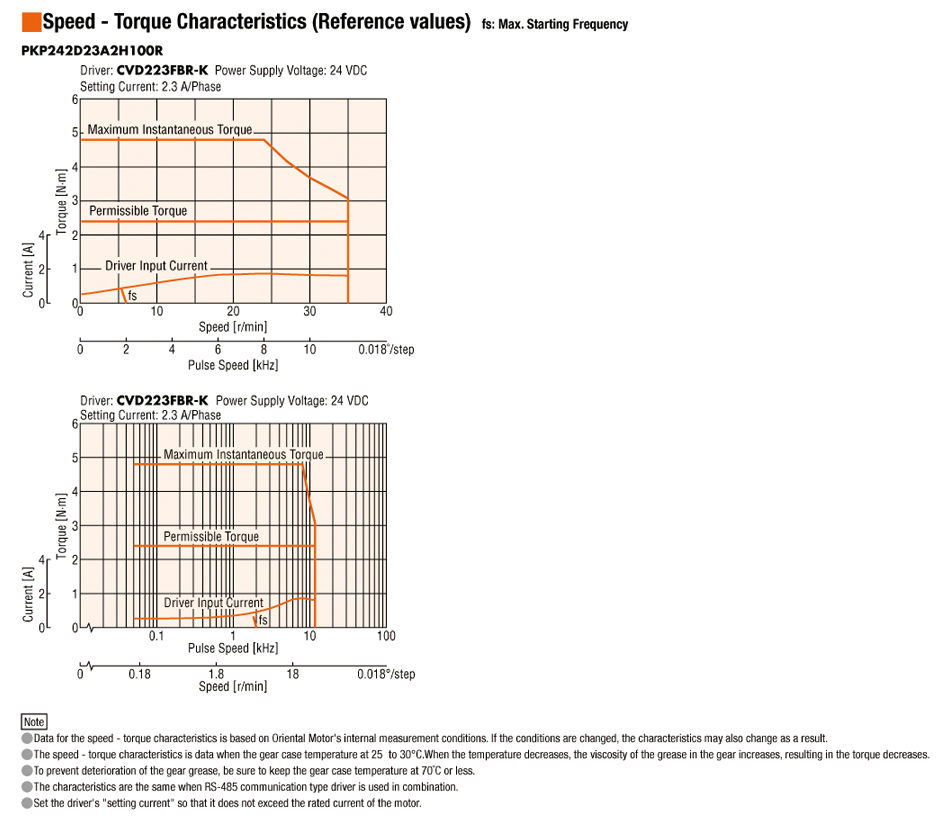

Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque 339 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 100 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 200 P/R, 3-Channel | Output Type Voltage (TTL equivalent) | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2-R3FL | Step Angle 1.8 ° | Frame Size 1.65 in | Motor Length 1.2 in. |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque 14.2 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Output Shaft Diameter 5 mm | Shaft Single | Encoder Equipped | Encoder Output 400 P/R, 3-Channel | Output Type Line Driver | Lead Wires 4 | $213.00 |
Add To Cart
Request Quote |
| PKP242D23A2-R3F | Step Angle 1.8 ° | Frame Size 1.65 in | Motor Length 1.2 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 14.2 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Output Shaft Diameter 5 mm | Shaft Single | Encoder Equipped | Encoder Output 400 P/R, 3-Channel | Output Type Voltage (TTL equivalent) | Lead Wires 4 | $213.00 |
Add To Cart
Request Quote |
| PKP242D23A2-R3EL | Step Angle 1.8 ° | Frame Size 1.65 in | Motor Length 1.2 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 14.2 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Output Shaft Diameter 5 mm | Shaft Single | Encoder Equipped | Encoder Output 200 P/R, 3-Channel | Output Type Line Driver | Lead Wires 4 | $213.00 |
Add To Cart
Request Quote |
| PKP242D23A2-R3E | Step Angle 1.8 ° | Frame Size 1.65 in | Motor Length 1.2 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 14.2 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Output Shaft Diameter 5 mm | Shaft Single | Encoder Equipped | Encoder Output 200 P/R, 3-Channel | Output Type Voltage (TTL equivalent) | Lead Wires 4 | $213.00 |
Add To Cart
Request Quote |
| PKP242D23A2H50R3JL | Step Angle 0.036 ° | Frame Size 2 in | Motor Length 1.69 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 255 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 50 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 1000 P/R, 3-Channel | Output Type Line Driver | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2-R3JL | Step Angle 1.8 ° | Frame Size 1.65 in | Motor Length 1.2 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 14.2 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Output Shaft Diameter 5 mm | Shaft Single | Encoder Equipped | Encoder Output 1000 P/R, 3-Channel | Output Type Line Driver | Lead Wires 4 | $213.00 |
Add To Cart
Request Quote |
| PKP242D23A2H50R3FL | Step Angle 0.036 ° | Frame Size 2 in | Motor Length 1.69 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 255 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 50 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 400 P/R, 3-Channel | Output Type Line Driver | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2H50R3EL | Step Angle 0.036 ° | Frame Size 2 in | Motor Length 1.69 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 255 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 50 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 200 P/R, 3-Channel | Output Type Line Driver | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2H50R3E | Step Angle 0.036 ° | Frame Size 2 in | Motor Length 1.69 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 255 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 50 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 200 P/R, 3-Channel | Output Type Voltage (TTL equivalent) | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2H100R3JL | Step Angle 0.018 ° | Frame Size 2 in | Motor Length 1.69 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 339 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 100 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 1000 P/R, 3-Channel | Output Type Line Driver | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2H100R3J | Step Angle 0.018 ° | Frame Size 2 in | Motor Length 1.69 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 339 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 100 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 1000 P/R, 3-Channel | Output Type Voltage (TTL equivalent) | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2H100R3FL | Step Angle 0.018 ° | Frame Size 2 in | Motor Length 1.69 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 339 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 100 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 400 P/R, 3-Channel | Output Type Line Driver | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2H100R3F | Step Angle 0.018 ° | Frame Size 2 in | Motor Length 1.69 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 339 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 100 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 400 P/R, 3-Channel | Output Type Voltage (TTL equivalent) | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2H100R3EL | Step Angle 0.018 ° | Frame Size 2 in | Motor Length 1.69 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 339 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 100 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 200 P/R, 3-Channel | Output Type Line Driver | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2H50R3J | Step Angle 0.036 ° | Frame Size 2 in | Motor Length 1.69 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 255 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Flat Harmonic Gear | Gear Ratio (X:1) 50 :1 | Output Shaft Diameter - | Shaft Single | Encoder Equipped | Encoder Output 1000 P/R, 3-Channel | Output Type Voltage (TTL equivalent) | Lead Wires 4 | $1,017.00 |
Add To Cart
Request Quote |
| PKP242D23A2-R3J | Step Angle 1.8 ° | Frame Size 1.65 in | Motor Length 1.2 in. |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque 14.2 oz-in | Current per Phase (A/phase) 2.3 | Shaft/Gear Type Round Shaft with Flat (No Gearhead) | Gear Ratio (X:1) - | Output Shaft Diameter 5 mm | Shaft Single | Encoder Equipped | Encoder Output 1000 P/R, 3-Channel | Output Type Voltage (TTL equivalent) | Lead Wires 4 | $213.00 |
Add To Cart
Request Quote |
