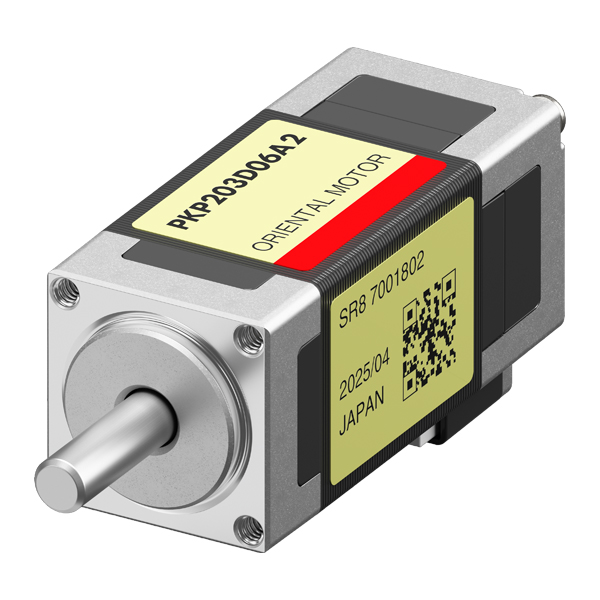

The high-torque PKP series stepper motor offers balanced performance enhanced by high torque, low vibration and low noise.
Item # |
Frame Size |
Motor Length |
Speed-Torque Characteristics |
Holding Torque |
Current per Phase (A/phase) |
Shaft/Gear Type |
Gear Ratio (X:1) |
Output Shaft Diameter |
Shaft |
Lead Wires |
Web Price |
CAD |
Add To Cart / Contact Sales |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

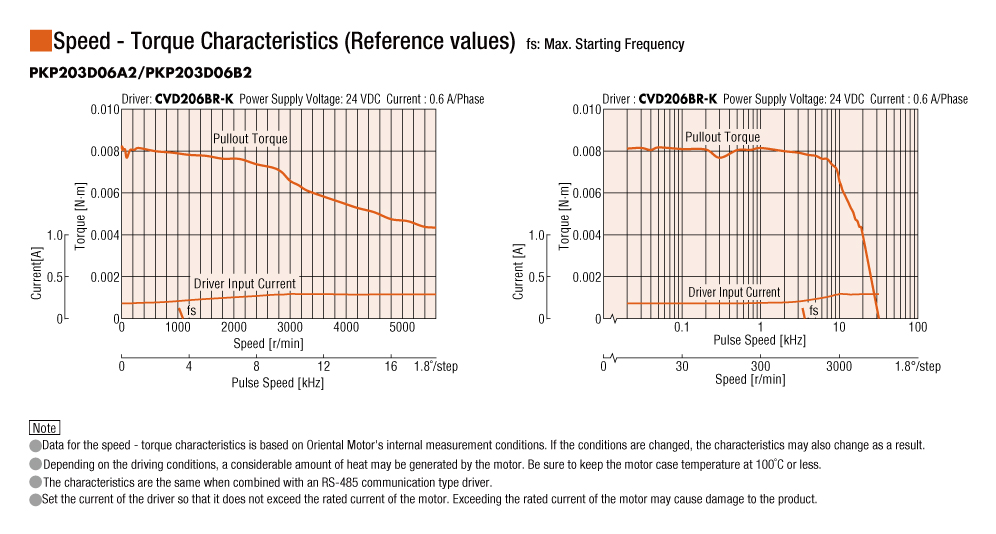

| PKP203D06A2 | Frame Size - 0.51 in13 mm | Motor Length - 1.2 in.30.5 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 1.06 oz-in0.0075 N·m | Current per Phase (A/phase) - 0.6 | Shaft/Gear Type - Round Shaft (No Gearhead) | Gear Ratio (X:1) - | Output Shaft Diameter - 3 mm | Shaft - Single | Lead Wires - 4 | $204.00 | CAD - |
Add To Cart
Request Quote |
| PKP203D06B2 | Frame Size - 0.51 in13 mm | Motor Length - 1.2 in.30.5 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 1.06 oz-in0.0075 N·m | Current per Phase (A/phase) - 0.6 | Shaft/Gear Type - Round Shaft (No Gearhead) | Gear Ratio (X:1) - | Output Shaft Diameter - 3 mm | Shaft - Double | Lead Wires - 4 | $206.00 | CAD - |
Add To Cart
Request Quote |

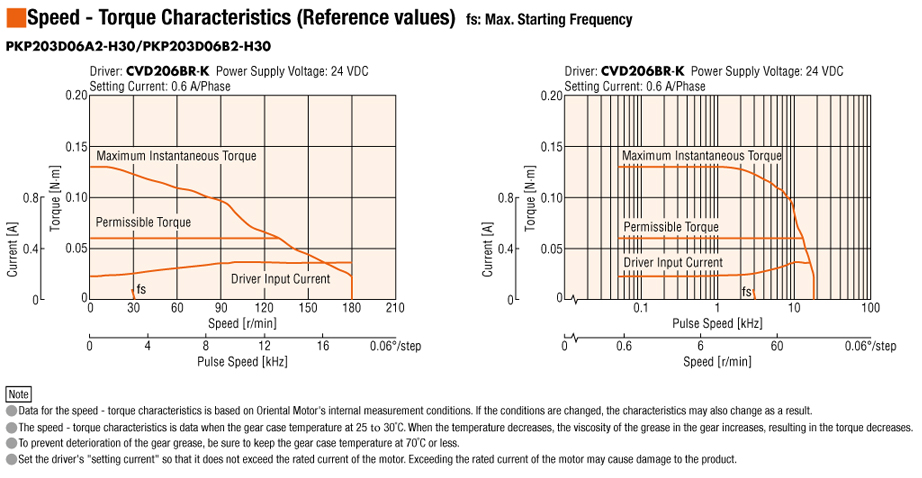

| PKP203D06A2-H30 | Frame Size - 0.51 in13 mm | Motor Length - 1.63 in.41.5 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 8.5 oz-in0.06 N·m | Current per Phase (A/phase) - 0.6 | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 30 :1 | Output Shaft Diameter - 3.5 mm | Shaft - Single | Lead Wires - 4 | $1,898.00 | CAD - |
Add To Cart
Request Quote |

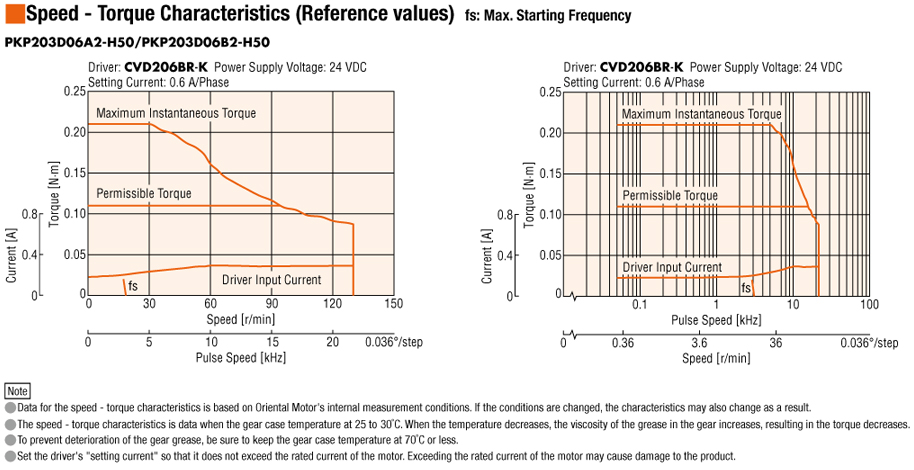

| PKP203D06A2-H50 | Frame Size - 0.51 in13 mm | Motor Length - 1.63 in.41.5 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 15.58 oz-in0.11 N·m | Current per Phase (A/phase) - 0.6 | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 50 :1 | Output Shaft Diameter - 3.5 mm | Shaft - Single | Lead Wires - 4 | $1,898.00 | CAD - |
Add To Cart
Request Quote |

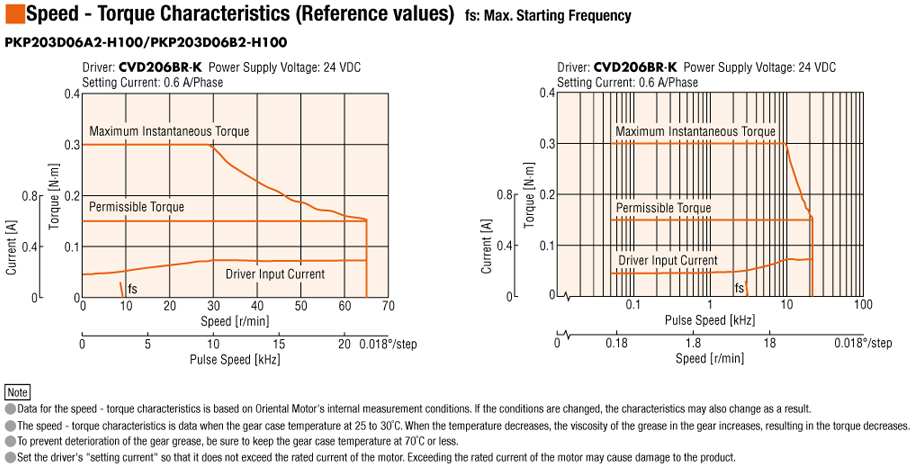

| PKP203D06A2-H100 | Frame Size - 0.51 in13 mm | Motor Length - 1.63 in.41.5 mm |
Speed-Torque Characteristics
 Speed - Torque Characteristics |
Holding Torque - 21.24 oz-in0.15 N·m | Current per Phase (A/phase) - 0.6 | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 100 :1 | Output Shaft Diameter - 3.5 mm | Shaft - Single | Lead Wires - 4 | $1,898.00 | CAD - |
Add To Cart
Request Quote |
| PKP203D06B2-H30 | Frame Size - 0.51 in13 mm | Motor Length - 1.63 in.41.5 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 8.5 oz-in0.06 N·m | Current per Phase (A/phase) - 0.6 | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 30 :1 | Output Shaft Diameter - 3.5 mm | Shaft - Double | Lead Wires - 4 | $1,900.00 | CAD - |
Add To Cart
Request Quote |
| PKP203D06B2-H50 | Frame Size - 0.51 in13 mm | Motor Length - 1.63 in.41.5 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 15.58 oz-in0.11 N·m | Current per Phase (A/phase) - 0.6 | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 50 :1 | Output Shaft Diameter - 3.5 mm | Shaft - Double | Lead Wires - 4 | $1,900.00 | CAD - |
Add To Cart
Request Quote |
| PKP203D06B2-H100 | Frame Size - 0.51 in13 mm | Motor Length - 1.63 in.41.5 mm |
Speed-Torque Characteristics
Speed - Torque Characteristics |
Holding Torque - 21.24 oz-in0.15 N·m | Current per Phase (A/phase) - 0.6 | Shaft/Gear Type - Harmonic Gear | Gear Ratio (X:1) - 100 :1 | Output Shaft Diameter - 3.5 mm | Shaft - Double | Lead Wires - 4 | $1,900.00 | CAD - |
Add To Cart
Request Quote |
