Power Input |
- DC |
Electromagnetic Brake |
- Equipped |

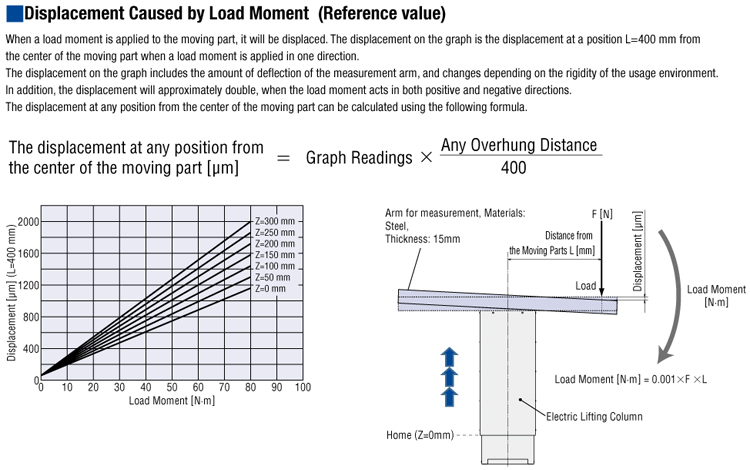

Static Permissible Moment |
- 80 N·m |
Lead |
- 6 mm |
Stroke |
- 200 mm |
Moving Parts Mass |
- 6.9 kg |
Body Mass |
- 26.3 kg |
Drive Method |
- Ball Screw |
Max. Speed |
- 300 mm/s |

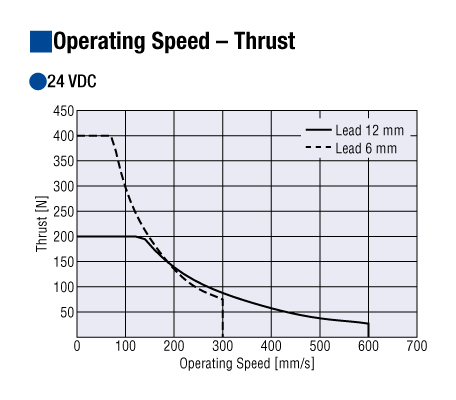

Thrust |
- ~400 N |
Push Force |
- ~500 N |
Holding Force (N) |
- 400 N |
| Max. Vertical Transportable Mass2 | - ~30 kg |
| Repetitive Positioning Accuracy3 | - ±0.05 mm |
California Proposition 65 |
-
⚠ CA WARNING Cancer risk from exposure to Nickel. See www.P65Warnings.ca.gov Risk of reproductive harm from exposure to Di-n-hexyl phthalate (DnHP). See www.P65Warnings.ca.gov Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl phthalate (DEHP). See www.P65Warnings.ca.gov See "?" or copy/paste www.P65Warnings.ca.gov in your browser. |
Insulation Class |
- Class B [130ºC (266ºF)] |
Degree of Protection |
- IP00 |
Degree of Protection (Motor) |
- IP66 (Excluding the mounting surface and the connector part) |
Ambient Temperature |
- 0 ~ 40ºC (32 ~ 104ºF) (non-freezing) |
Ambient Humidity |
- 85% or less (Non-condensing) |
Operating Atmosphere |
- Use in an area without corrosive gases and dust. The product should not be exposed to water, oil or other liquids. |
Multi-Rotation Detection Range in Power OFF State |
- ±900 rotations (1800 rotations) |
Brake Type |
- Active when the power is off |
Control Power Supply |
- 24 VDC ±5% (The specification for the cable type products with an electromagnetic brake is 24 VDC ±4% when extending to 20 m using the connection cable.) |
Power Consumption |
- 6 W |
Excitation Current |
- 0.25 A |
|
|
|
|
|
|
- 1 Quoted Ship Date for orders placed before 12:00 pm PST. Quantities may affect Shipping Date.
- 2 The load mass that can be driven is the transportable mass minus the moving parts mass.
- 3 There is approximately 0.06 mm of internal play.
