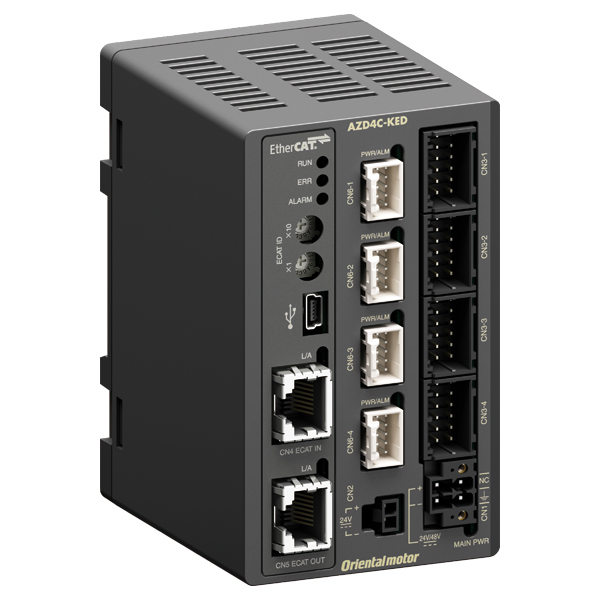

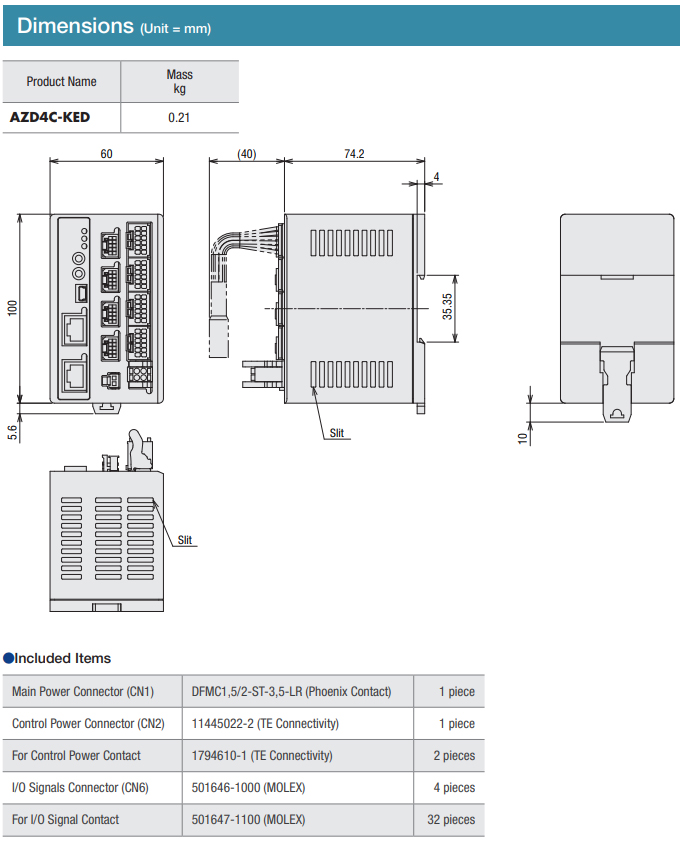

AZD4C-KED,Multi-Axis AZ Series EtherCAT Driver Slim Type (24/48 VDC)

Request Information

The αSTEP AZ Series multi-axis driver supports EtherCAT communication. Compatible with the CiA402 drive profile. It can be connected to the αSTEP AZ Series DC input motors and electric actuators.

4-axis Slim Type

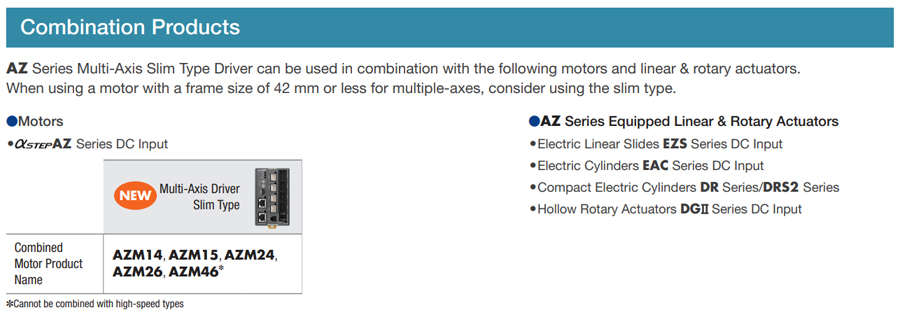

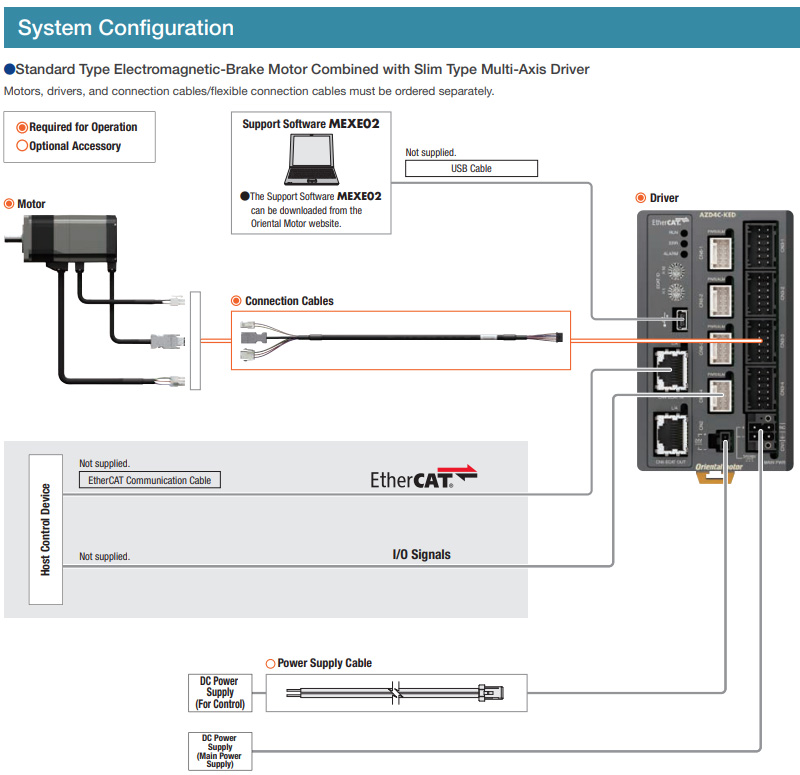

Compatible with αSTEP AZ Series DC input stepper motors and electric actuators

*Connection Cables are required. The connection cables, flexible connection cables, extension cables, and flexible extension cables are different from the existing multi-axis drivers. Be sure to use the slim type cables.
Please contact technical support before selecting this product so we can assist you with proper motor selection for this driver.

Drivers

Return Policy	- This product cannot be cancelled or returned once the order has been processed.
Product Line	- Oriental Motor®
Driver Type	- Closed Loop, Absolute, Multi-Axis, Slim
Number of Axes	- 4-axis
Power Supply	- 24 VDC/48 VDC±10%
Current	- 6.0 A
Control Power Supply	- 24 VDC±10% With Electromagneitc Brake: 24 VDC ±5% (If the extension distance exceeds 10 m, the specification is 24 VDC ±3%.)
Control Current	- 0.7 A
Degree of Protection	- IP20
Operating Environment	- Ambient Temperature: 0 to 50ºC (32 ~ 122ºF) (non-freezing) Humidity: 85% or less (non-condensing) Altitude: 1000 m (3280 ft.) max. above sea level Atmosphere: Use in an area without corrosive gases and dust. This product should not be exposed to water or oil.
Storage Condition	- Ambient Temperature: -25 to 70ºC (-13 ~ 158ºF) (non-freezing) Humidity: 85% or less (non-condensing) Altitude: 3000 m (9842 ft.) max. above sea level Atmosphere: Use in an area without corrosive gases and dust. This product should not be exposed to water or oil.
Insulation Resistance	- The measured value is 100 MΩ or more when a 500 VDC megger is applied between the following places: Between FG terminal and Power Supply terminal
Safety Standards	- UL CE

Baud Rate	- 100Mbit/s, Full duplex
Communication Period	- Free Run: 1ms or more Synchronization with SM2 Event:1ms or more DC mode:0.5ms, 1ms, 2ms, 3ms, 4ms, 5ms, 6ms, 7ms, 8ms
Node Address	- 0~255 (00h~FFh, initial value:00h)
Communication Protocol	- EtherCAT dedicated protocol(CoE) CiA402 drive profile
