| Lead Time1 | - {Contact your local sales office for more information.} |

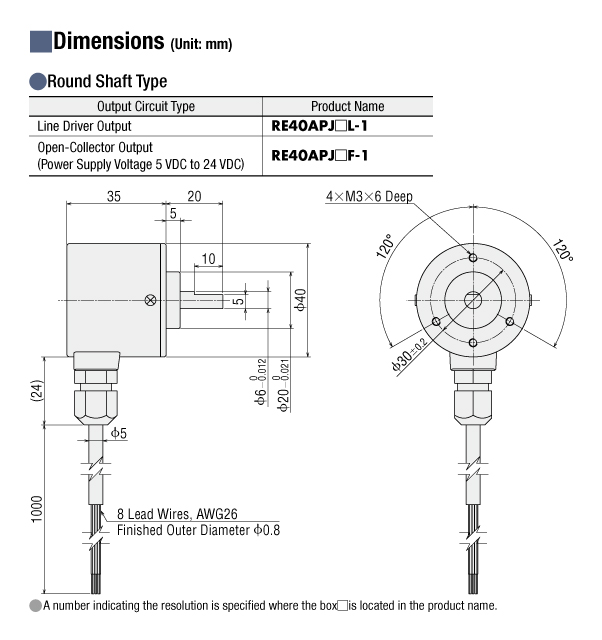

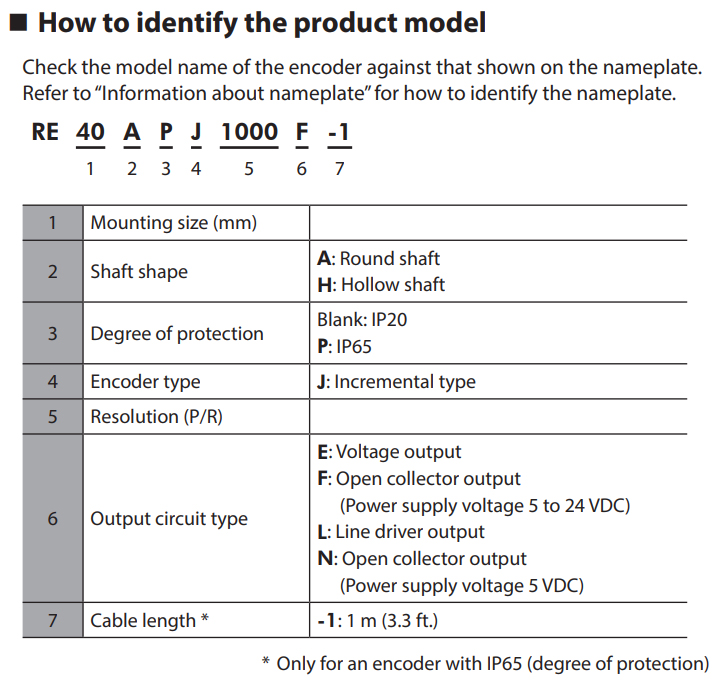

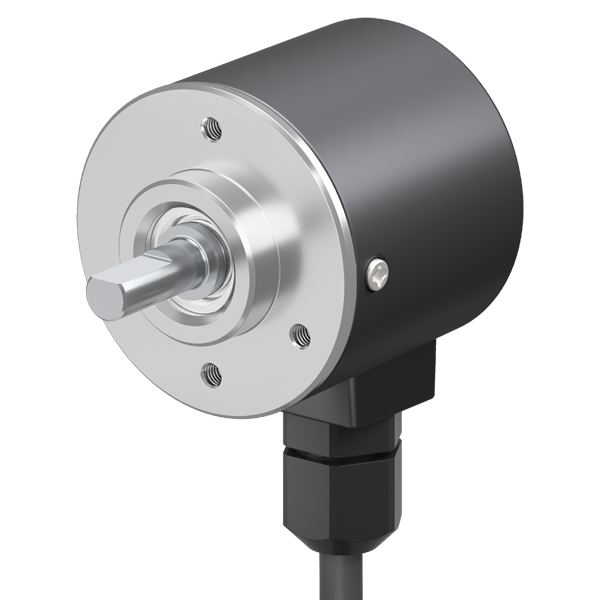

Mounting Size |
- 1.57 in40 mm |
Output Shaft Type |
- Round Shaft |
Resolution (P/R) |
- 1800 |
Output Type |
- Incremental |
Output |
- Line Driver |

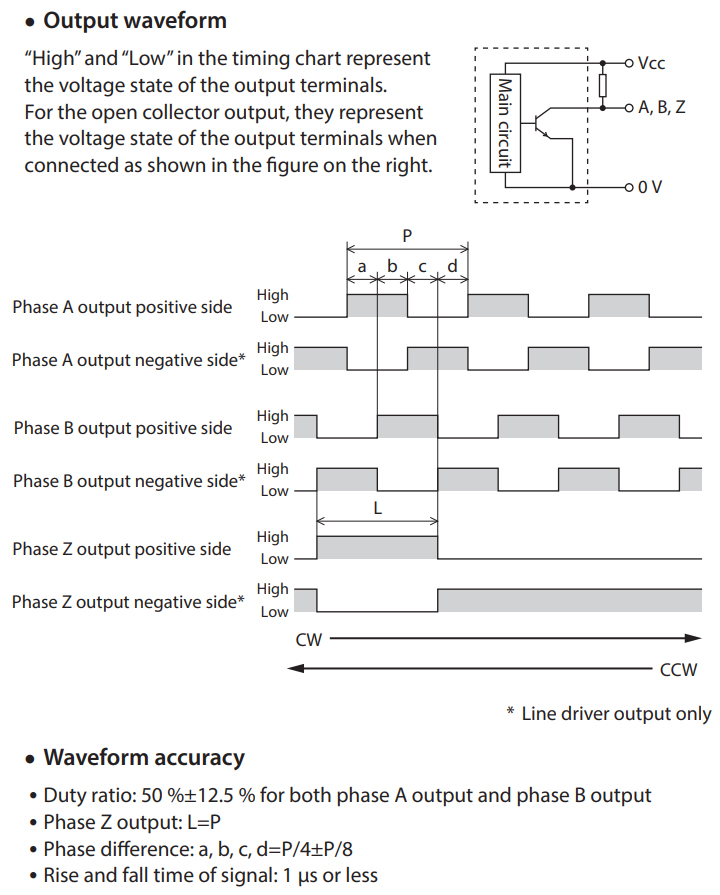

Output Signals |
- Phase A, Phase B, Phase Z: 3 Channels |
Output Circuit |
-
 |
Max. Draw Current |
- 20 mA |
Output Voltage (High) |
- 2.5 VDC min |
Output Voltage (Low) |
- 0.5 VDC max. |
Response Frequency (kHz) |
- 200 kHz max. |
Power Supply |
- 5 VDC ± 10% |
Current Consumption |
- 30 mA max. |
Angular Accuracy |
- ±0.36˚ |
Vibration |
- 10 to 55 Hz, double amplitude 1.5 mm, 2 hours each in X, Y, and Z directions |
Shock |
- 490 m/s2 11 ms X, Y, Z directions; 3 times each |
Inertia |
- 1.2×10−7 kg·m²0.00656097 oz-in² |
Permissible Radial Load |
- 6.74 lb30 N |
Permissible Axial Load |
- 4.5 lb20 N |
Max Speed (rpm) |
- 6000 r/min (Max. Response Frequency) |
Mass |
- 110 g3.88 oz |
California Proposition 65 |
-
⚠ CA WARNING Cancer risk from exposure to Nickel. See www.P65Warnings.ca.gov Risk of reproductive harm from exposure to Di-n-hexyl phthalate (DnHP). See www.P65Warnings.ca.gov Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl phthalate (DEHP). See www.P65Warnings.ca.gov See "?" or copy/paste www.P65Warnings.ca.gov in your browser. |
Ambient Temperature |
- −10 to +70 °C (+14 to 158 °F) (non-freezing) |
Ambient Humidity |
- 85 % or less (non-condensing) |
Altitude |
- Up to 1,000 m (3,300 ft.) above sea level |
Degree of Protection |
- IP65 |
Operating Atmosphere |
- No corrosive gas. No exposure to oil. |
Insulation Resistance |
- 100 MΩ or more when 500 VDC megger is applied between the power supply input and frame |
Dielectric Strength |
- Sufficient to withstand 0.5 kVAC at 50/60 Hz applied between the power supply input and frame for 1 minute |
|
|
|
|
|
|
