40 mm Rotary Encoders
Rotary Encoders

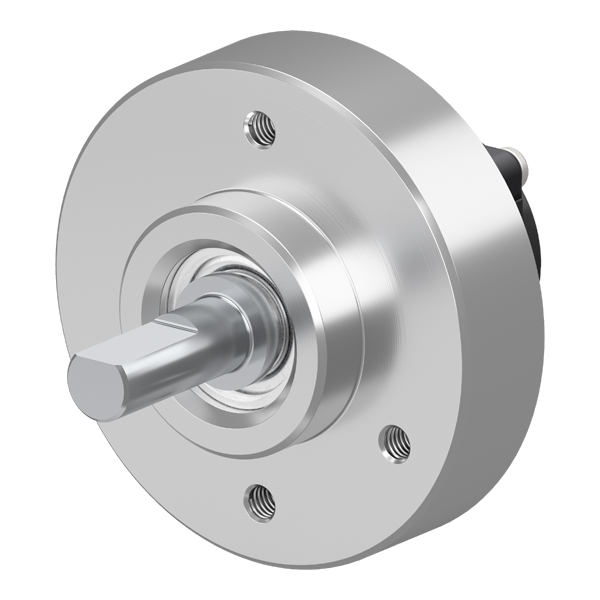

The Rotary Encoder is a small, thin, and lightweight standalone incremental encoder that can be installed in tight spaces.
- Outer diameter ϕ40 mm
- Incremental type
- Hollow shaft or round shaft type
- 100~4000 P/R
- Voltage, line driver, or open collector output
Clear
Filter
Output Shaft Type
- Hollow Shaft
- Round Shaft
Resolution (P/R)
- 100 (P/R)
- 200 (P/R)
- 360 (P/R)
- 400 (P/R)
- 500 (P/R)
- 600 (P/R)
- 720 (P/R)
- 800 (P/R)
- 1000 (P/R)
- 1800 (P/R)
- 2000 (P/R)
- 2500 (P/R)
- 3600 (P/R)
- 4000 (P/R)
Output
- Line Driver
- Open Collector
- Voltage
Item # |
Mounting Size |
Output Shaft Type |
Resolution (P/R) |
Output Type |
Output |
Output Voltage (High) |
Output Voltage (Low) |
Current Consumption |
Web Price |
Add To Cart / Contact Sales |
|---|---|---|---|---|---|---|---|---|---|---|
| RE40AJ100E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 100 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ200E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 200 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ360E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 360 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ400E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 400 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ500E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 500 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ600E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 600 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ720E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 720 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ800E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 800 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ1000E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 1000 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ1800E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 1800 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ2000E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 2000 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ2500E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 2500 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $152.00 |
Add To Cart
Request Quote |
| RE40AJ3600E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 3600 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $152.00 |
Add To Cart
Request Quote |
| RE40AJ4000E | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 4000 (P/R) | Output Type - Incremental | Output - Voltage | Output Voltage (High) - 4.3 VDC min. (no load) | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 45 mA max. | $152.00 |
Add To Cart
Request Quote |
| RE40AJ100F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 100 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ200F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 200 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ360F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 360 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ400F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 400 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ500F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 500 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ600F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 600 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ720F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 720 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ800F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 800 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ1000F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 1000 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ1800F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 1800 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
| RE40AJ2000F | Mounting Size - 1.57 in40 mm | Output Shaft Type - Round Shaft | Resolution (P/R) - 2000 (P/R) | Output Type - Incremental | Output - Open Collector | Output Voltage (High) - - | Output Voltage (Low) - 0.5 VDC max. | Current Consumption - 18 mA max. | $140.00 |
Add To Cart
Request Quote |
