MSER-V, Industrial Training Robot

Request Information

This industrial training product is designed to facilitate learning of industrial robot concepts from both mechanical and software perspectives and is intended for use in industrial environments, including industrial training simulators; therefore, it is outside the scope of ANSI/CAN/UL 3300.

3-axis small tabletop robot to start teaching and learning robotics
Structural learning and easy programming using command icons
Installation area ϕ16 cm, body mass 4.2 kg
Maximum reach (horizontal) 390 mm*, payload 1 kg, repetitive positioning accuracy ±0.1 mm (*Arm lengths are customizable)

Specifications

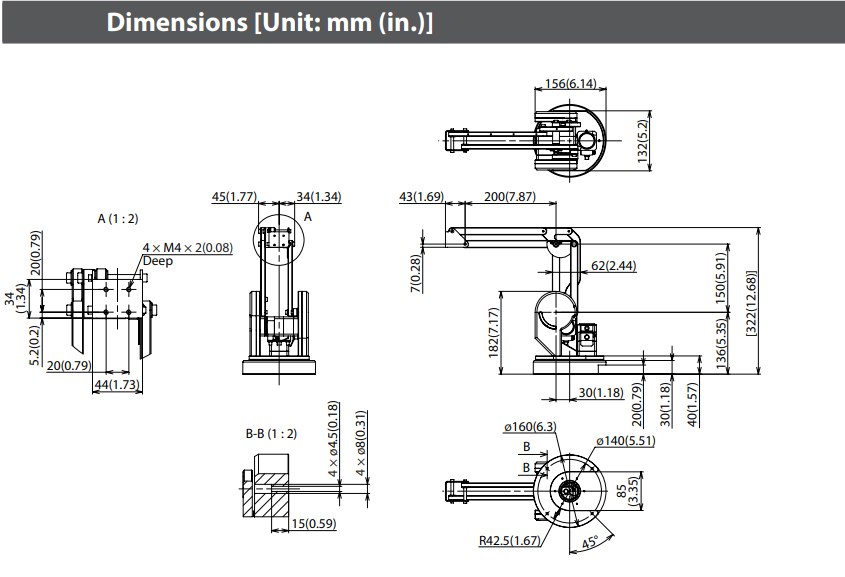

Dimensions

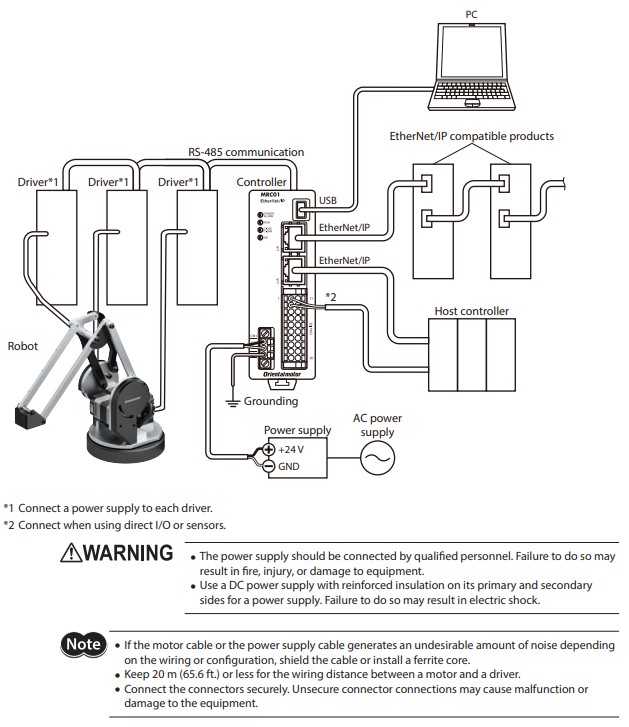

System

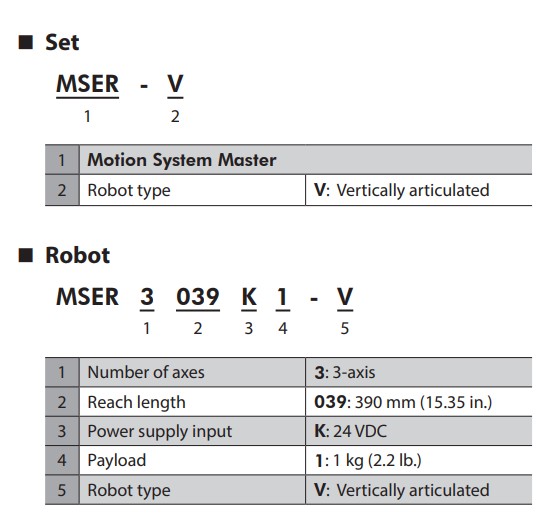

Product Number

Lead Time¹	- {Contact your local sales office for more information.}
Return Policy	- This product cannot be cancelled or returned once the order has been processed.
Robot Configuration	- Articulated
Number of Axes	- 3-axis
Max. Vertical Reach	- 352 mm
Max. Horizontal Reach	- 390 mm
Power Supply	- DC
Transportable Mass	- 1 kg
Input Voltage (V)	- 24 VDC

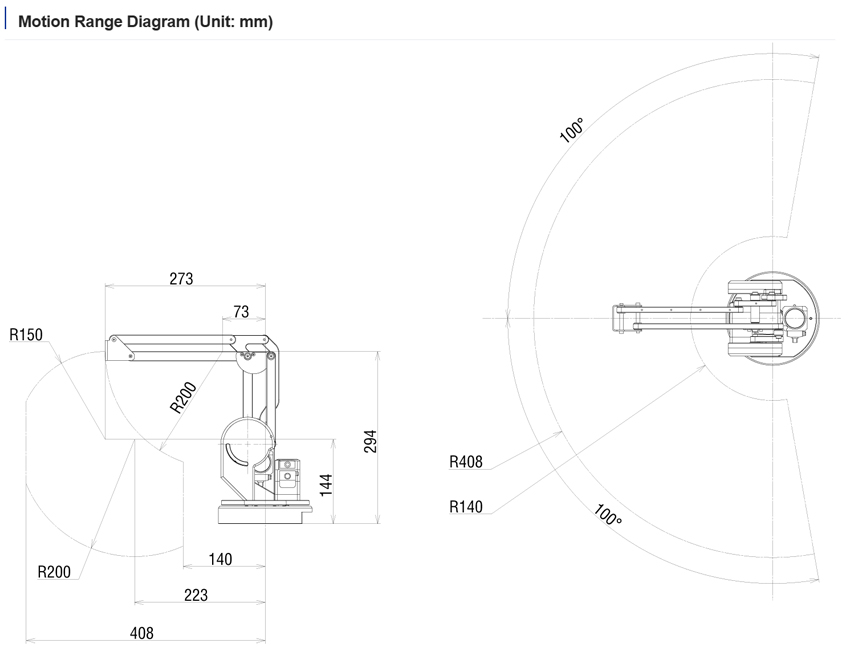

Moving Range - S-axis (Swiveling)	- ±100 deg
Moving Range - L-axis (Lower arm)	- 0~+90 deg
Moving Range - U-axis (Upper arm)	- 0~+100 deg
Repetitive Positioning Accuracy	- ±0.1 mm

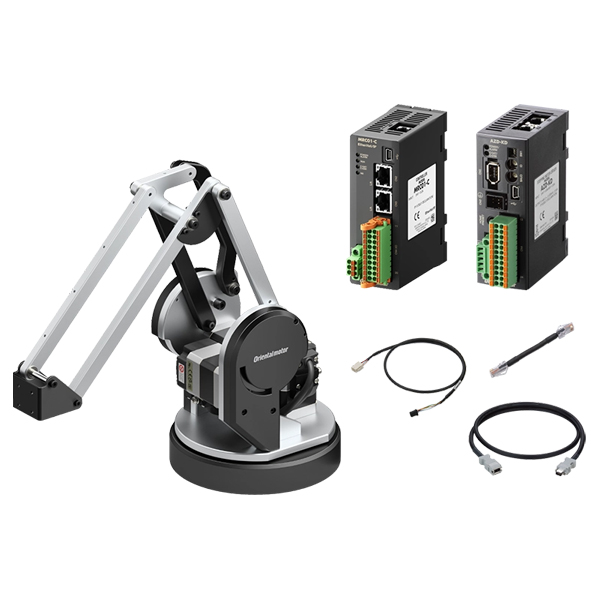

Components	- AZD-KD, AZ Series Driver with Built-in Controller (Stored Data) (24/48 VDC) ($534.00) CC001-RS4, RS485 Communication Cable (0.33 ft. [0.1 m]) ($35.00) CC010VNR-E2, Flexible Encoder Connection Cable (AZ Series) (1 m [3.3 ft]) ($59.00) CC010VZR2-M, Flexible Motor Connection Cable (AZ Series DC Input) (1 m [3.3 ft]) ($53.00) MRC01, AZ Series Robot Controller EtherNet/IP™ ($1,870.00)
California Proposition 65	- ⚠ CA WARNING Cancer risk from exposure to Nickel. See www.P65Warnings.ca.gov Risk of reproductive harm from exposure to Di-n-hexyl phthalate (DnHP). See www.P65Warnings.ca.gov Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl phthalate (DEHP). See www.P65Warnings.ca.gov See "?" or copy/paste www.P65Warnings.ca.gov in your browser.

¹ Quoted Ship Date for orders placed before 12:00 pm PST. Quantities may affect Shipping Date.
