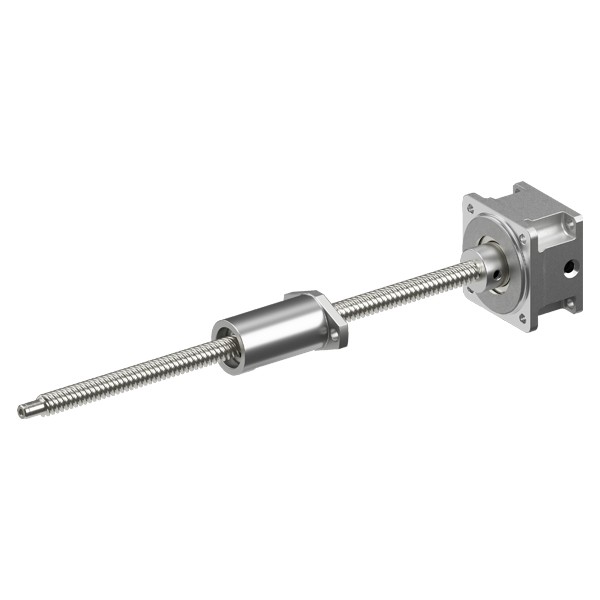

Rolled Ball Screw Attachment / Mounting Adapter for Linear Actuator

The Mounting Adapter for Linear Actuator saves space and reduces design time compared to a custom-built mechanism.

Linear motion mechanism with a rolled ball screw and an iron nut
Easy installation without the need of coupling to an Oriental Motor stepper motor
For the 30 mm frame size, thrust force is at max. 50 N

1 - 2 of 2 | Results Per Page | View |

Request Information Compare Items Search by Specification

Clear Filter

Item #	Frame Size	Compatible Motors	Drive Method	Stroke	Permissible Thrust Load	Permissible Speed	Lead	Max. Horizontal Transportable Mass	Max. Vertical Transportable Mass	Repetitive Positioning Accuracy	Web Price	Add To Cart / Contact Sales

LA303A10	- 30 mm	- AZ Series	- Rolled Ball Screw	- 100 mm	- 50 N	- 120 mm/s	- 3 mm	- 5 kg	- 5 kg	- ±0.01 mm	$575.00	Add To Cart Request Quote
LA306A10	- 30 mm	- AZ Series	- Rolled Ball Screw	- 100 mm	- 25 N	- 240 mm/s	- 6 mm	- 5 kg	- 2.5 kg	- ±0.01 mm	$690.00	Add To Cart Request Quote
