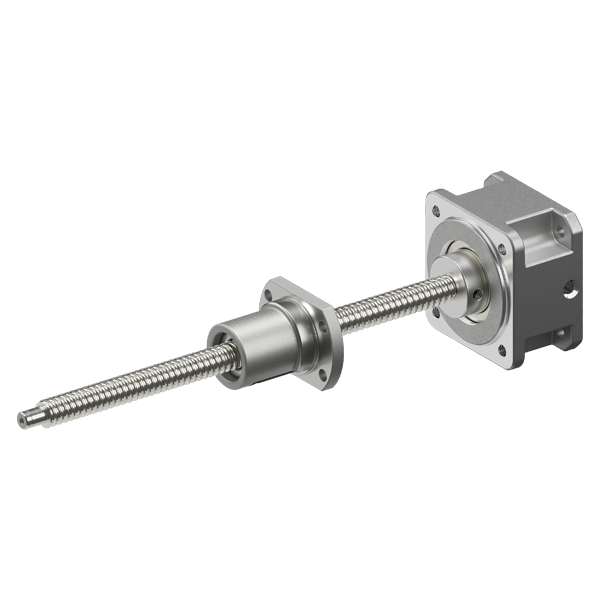

The Mounting Adapter for Linear Actuator saves space and reduces design time compared to a custom-built mechanism.
Item # |
Frame Size |
Compatible Motors |
Drive Method |
Stroke |
Permissible Thrust Load |
Permissible Speed |
Lead |
Max. Horizontal Transportable Mass |
Max. Vertical Transportable Mass |
Repetitive Positioning Accuracy |
Web Price |
Add To Cart / Contact Sales |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LA422A10Z | Frame Size - 42 mm | Compatible Motors - AZ Series | Drive Method - Rolled Ball Screw | Stroke - 100 mm | Permissible Thrust Load - 160 N | Permissible Speed - 60 mm/s | Lead - 2 mm | Max. Horizontal Transportable Mass - 16 kg | Max. Vertical Transportable Mass - 16 kg | Repetitive Positioning Accuracy - ±0.01 mm | $518.00 |
Add To Cart
Request Quote |
| LA428A10Z | Frame Size - 42 mm | Compatible Motors - AZ Series | Drive Method - Rolled Ball Screw | Stroke - 100 mm | Permissible Thrust Load - 40 N | Permissible Speed - 240 mm/s | Lead - 8 mm | Max. Horizontal Transportable Mass - 16 kg | Max. Vertical Transportable Mass - 4 kg | Repetitive Positioning Accuracy - ±0.01 mm | $633.00 |
Add To Cart
Request Quote |
